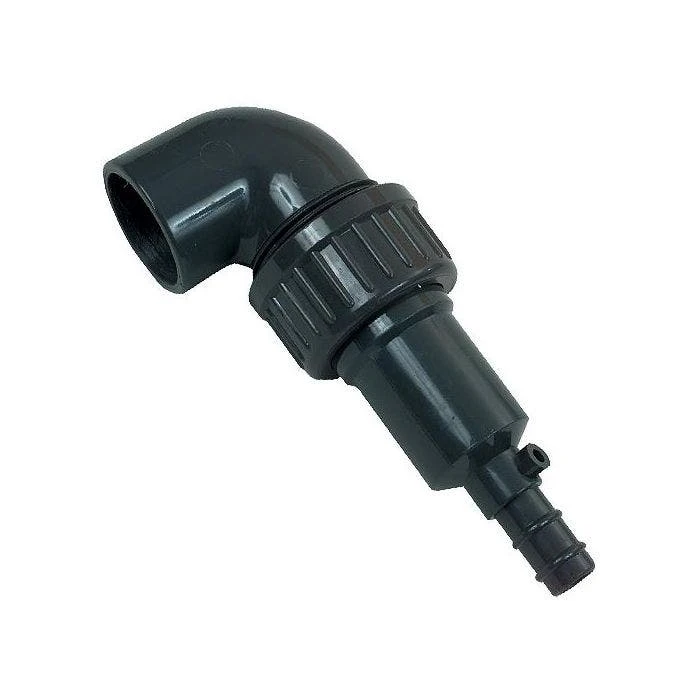

Dramm Irrigation Run Out Valve

• Size: Designed to be installed at the end of 1″ water line
• Compatibility: Can be installed at the end of 1″ or 3/4″ PVC pipelines
• Function: Allows water to run out of the line, eliminating drip from all overhead nozzles
• Pressure Requirement: Requires at least 15 PSI to work properly
• Connection: Can be connected directly to 1″ PVC with PVC cement
• Connection Options: Use PVC cement and a 1″ to 3/4″ PVC reducer bushing to connect Run Out Valves to 3/4″ PVC

• Run-Out Valves are designed to be installed at the end of 1″ or 3/4″ PVC pipelines.
• When the water is turned off, the Run-Out Valve will open and allow water to run out of the line, eliminating drip from all overhead nozzles.
• Run-Out Valves require at least 15 PSI to work properly.
• Can be connected directly to 1″ PVC with PVC cement.
• Follow the PVC cement directions regarding pipe preparation and drying times.
• Use PVC cement and a 1″ to 3/4″ PVC reducer bushing to connect Run-Out Valves to 3/4″ PVC.

2. What type of pipelines can the Run Out Valve be installed on?
The Run Out Valve is designed to be installed at the end of 1″ or 3/4″ PVC pipelines.

3. What is the minimum PSI requirement for the Run Out Valve to work properly?
The Run Out Valves require at least 15 PSI to work properly.

4. How can the Run Out Valve be connected to different sizes of PVC?
The Run Out Valve can be connected directly to 1″ PVC with PVC cement. Use PVC cement and a 1″ to 3/4″ PVC reducer bushing to connect Run Out Valves to 3/4″ PVC. Follow the PVC cement directions regarding pipe preparation and drying times.
