A low-cost alternative to other irrigation systems.

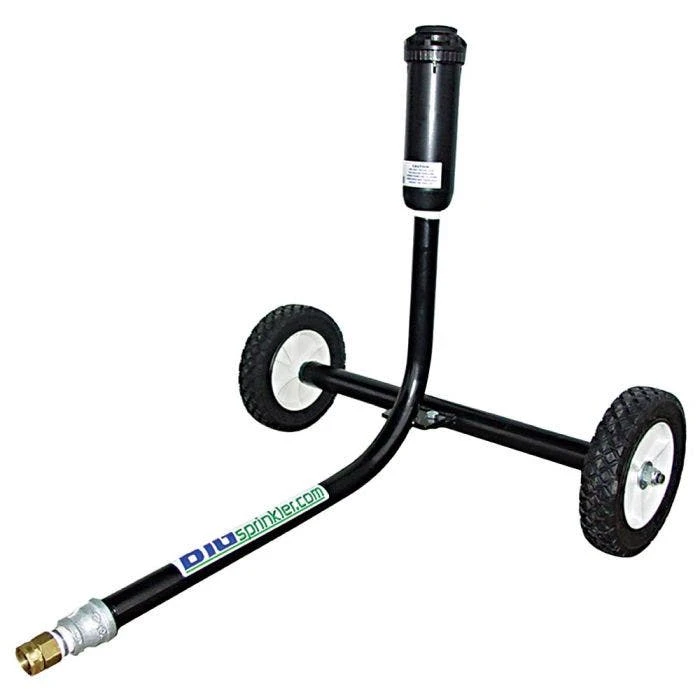

The 1000R heavy-duty wheeled sprinkler cart comes with a FULL CIRCLE Falcon Gear Drive Rotor Sprinkler Technology! This smooth and quiet rotor drive sprinkler features an even water pattern with a gentle rain curtain, interchangeable nozzles, and “leak free” seals to avoid puddling at the sprinkler. It works well at low pressures and is an excellent tool for watering, with both residential and and commercial uses. Also works great for horse arena dust suppression because of its leak free wiper seal avoids puddling at the head.
The 1000R Heavy Duty Sprinkler Cart with wheels is constructed of 1 heavy gauge steel pipe, a solid 1.5″ steel axle for weight, and a durable “baked on” powder coat finish. This is the full circle version, the 1000R-PC is the part circle version (part circle version operates between 40 and 360 degrees). With the Falcon rotor, you can have it all- uncompromising performance, superior distribution, reliability and durability. Rain Curtain nozzles maximize performance and coverage. A multi-function wiper seal and tapered riser keep the stem clear of debris, providing long-term protection. In addition, heavy-duty construction makes this rotor one of the toughest in the field. Spray distances up to 120 feet in diameter! This sprinkler will maximize your potential and is the largest you can operate from a standard faucet and 3/4″ garden hose.

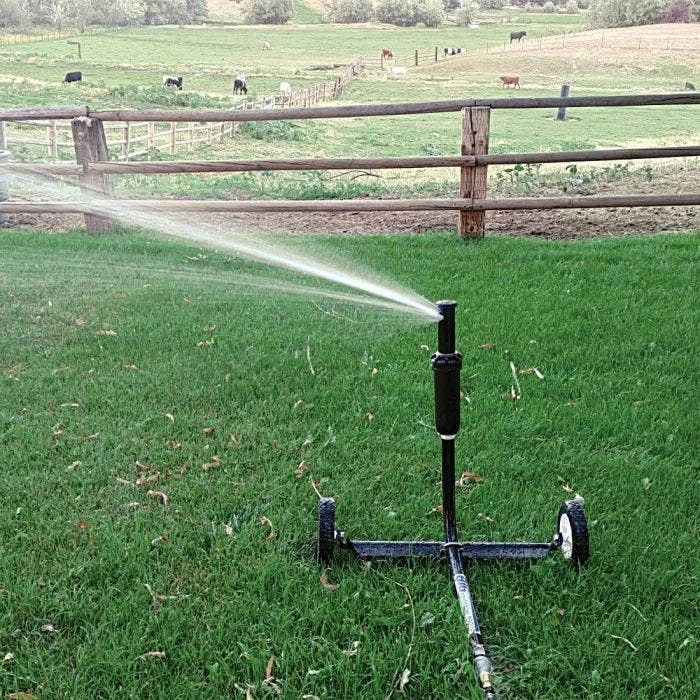

Portable stand sprinkler carts are a great alternative to other irrigation systems when a lower cost option is needed. Simply place the sprinkler in the area to be watered, complete the application in the desired time, then pull the sprinkler ahead to the next dry area to be watered!
Proper operation of sprinkler head requires 30 to 70psi with flow rates from 3 to 22 gpm, measured at the sprinkler, not at water source.
Quality Made in the USA!!
- Type: Commercial Grade Big Sprinkler
- Circle Type: Full Circle
- Drive Type: Falcon Gear Drive Rotor Sprinkler Technology
- Water Pattern: Even
- Nozzles: Interchangeable
- Seals: Leak free
- Pressure Range: 30 to 70 psi
- Uses: Residential and commercial watering, horse arena dust suppression
- Construction: Heavy gauge steel pipe, solid 1.5″ steel axle
- Finish: Durable “baked on” powder coat
- Part Circle Version: 1000R PC (40-360 degrees)
- Performance: Uncompromising, superior distribution
- Riser: Tapered
- Spray Distance: Up to 120 feet in diameter
- Portable: Yes, on wheeled sprinkler cart
- Made in: USA

- This product is covered under A.M. Leonard’s exclusive 30-Day Down to Earth Guarantee. Click Here for more Details.
- Commercial Grade Big Sprinkler
- Full Circle
- Operates at flow rates 3-22 gpm
- A low cost alternative to other irrigation systems.
- Falcon Gear Drive Rotor Sprinkler Technology.
- Works well at low pressures and is an excellent tool for watering with both residential and commercial use.
- Constructed of 1 heavy gauge steel pipe, a solid 1.5″ steel axle for weight, and a durable “baked on” powder coat finish.
- Rain Curtain nozzles maximize performance and coverage with spray distances up to 120 feet in diameter.
The Commercial Grade Big Sprinkler can spray distances up to 120 feet in diameter.
What type of nozzles does the Commercial Grade Big Sprinkler have?
The sprinkler features Rain Curtain nozzles that maximize performance and coverage.
What is the difference between the full circle and part circle version of the 1000R Heavy Duty Sprinkler Cart?
The full circle version has an even water pattern with a gentle rain curtain and operates at 360 degrees. The part circle version operates between 40 and 360 degrees.
What is the construction of the 1000R Heavy Duty Sprinkler Cart?
The sprinkler cart is constructed of 1 heavy gauge steel pipe, a solid 1.5″ steel axle for weight, and a durable “baked on” powder coat finish.
- Hose GPM Comparison Chart
- Specifications
- Water Hook-up Instructions
- Specifications
- Performance Chart
- Red Layflat Hoses
WARNING: This product contains a chemical known to the State of California to cause cancer. For more information, please see www.P65Warnings.ca.gov
